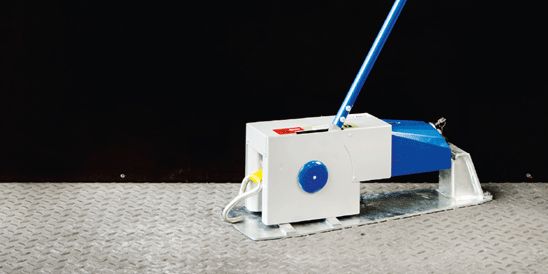

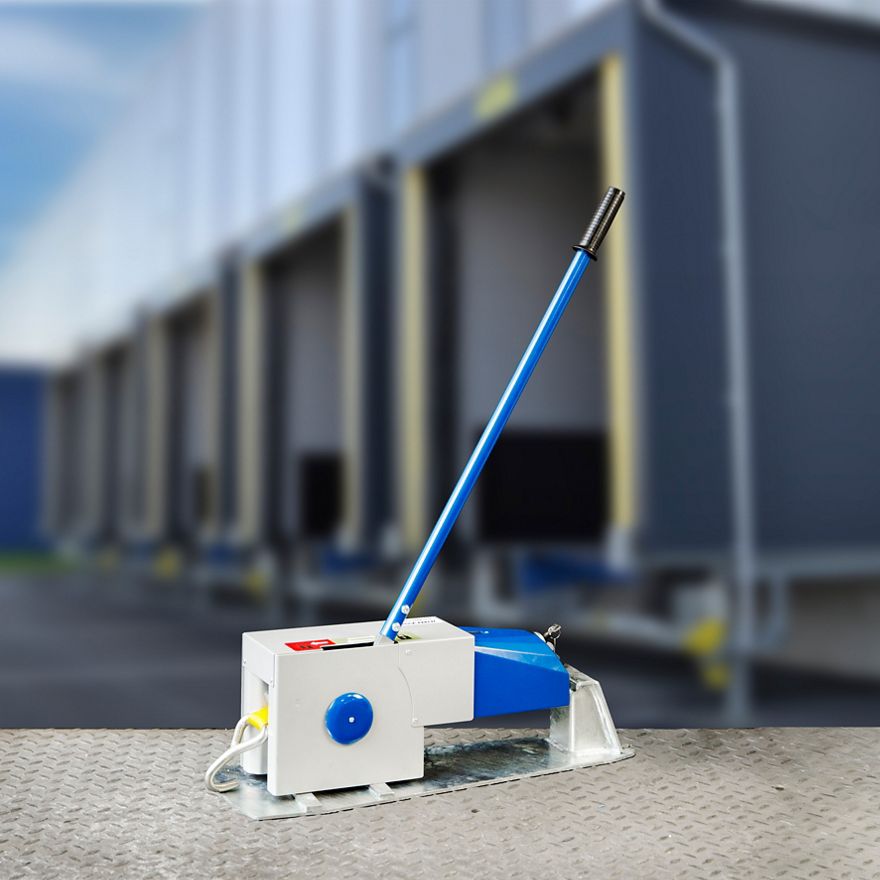

ASSA ABLOY DE6290TL Truck Lock
Safely and easily connect a trailer to a building with the ASSA ABLOY DE6090TL truck lock system
The ASSA ABLOY DE6090TL truck lock is a manual trailer restraint system that helps prevent accidents and injuries at the loading bay. During the loading operation there is a risk that the trailer can roll away unintentionally from the dock due to the impact of the fork lift or truck traffic, a problem known as "vehicle creep".
The ASSA ABLOY DE6090TL truck lock is the ideal solution to counter this risk. Restraint of the trailer can be achieved from the inside of the loadhouse without any equipment being installed in the yard. With this solution there are no obstacles in the yard which minimizes the risk of damage and injuries. Life-endangering situations with people outside activating conventional wheel chocks or other devices are eliminated.
Prevents vehicle creep and gives warning to the truck driver before reaching the breaking point of the strap
Interlocking; authorising the dock leveler control unit to be operated or not
Manual operation by one person
ASSA ABLOY DE6090TL truck lock system
- Product ID: DE6290TL
- Base plate: galvanized steel
- Cover back part: painted blue RAL 5010
- Cover front part and roller house: painted gray RAL 9006
- Edge protection: stainless steel
- Breaking point (max. restraining point): 35kN
- Warning signal: siren sounds and flashingred signal at 12kN tensioning force
- Siren; 105 dBA
- Power supply: 24 V DC, 100mA
- Electronic feature: interlocking of the dock leveler control box
- Product ID: DE6290TL
