ASSA ABLOY LH6180IL Insulated Loadhouse
Achieve a complete, space-saving docking bay solution with a ASSA ABLOY (formerly Crawford) loadhouse
Loadhouses are an economic insulation solution that contributes to energy savings and an improved working environment. They contain all the relevant components for a complete docking bay; leveler, shelter and door. Together with the Autodock® bottom platform and an insulated or non-insulated cladding house, a complete, stand-alone dock loading system is formed.
The loadhouse makes it possible to move the actual loading and unloading area outside the building, thereby releasing the corresponding floor area inside. No major building modifications are required.
Due to the thermal separation between building and docking unit, the loadhouse can be used in temperature controlled applications.

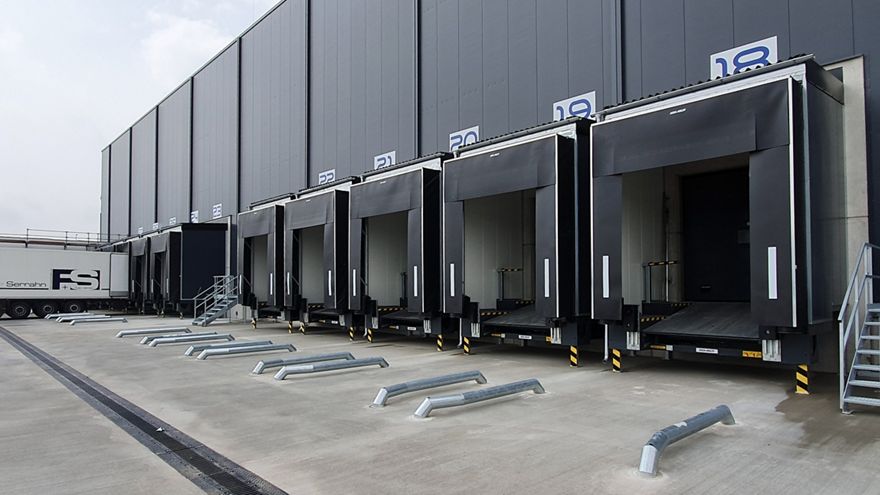

ASSA ABLOY LH6180IL Insulated Loadhouse
The ASSA ABLOY LH6180IL loadhouse is a new insulated version with a very attractive appearance, specially developed to meet all requirements of architects, builders and operators. The outstanding feature is that the walls are made of insulated panels without a steel frame inside the loadhouse.
Stand alone housing for placing the dock leveler outside the building
Thermal separation
Only as steel frame without cladding or with cladding (walls and roof)
BIM objects
Materials and textures
ASSA ABLOY LH6080L heavy-duty stand-alone loadhouse
- Product Id: LH6180IL
- Normal length: 2450, 3000 mm
- Normal width: 3300, 3500, 3600, 3750 mm
- Thickness of insulation: 42 mm
- Thickness of material: 0,6 mm profiled steel sheet
- Surface treatment: hot dip galvanised
- Basic wind load 0,913 kN/m²
