ASSA ABLOY DS6060A Curtain Dock Shelter Aluminium
Secure efficient weather protection and a high tear-resistance with a ASSA ABLOY mechanical-curtain dock shelter
The ASSA ABLOY DS6060A is an advanced curtain dock shelter, designed to improve energy efficiency and protect loading and unloading processes. Featuring a lightweight aluminium frame, this shelter offers durability and ease of use, making it a reliable choice for businesses across Ireland.

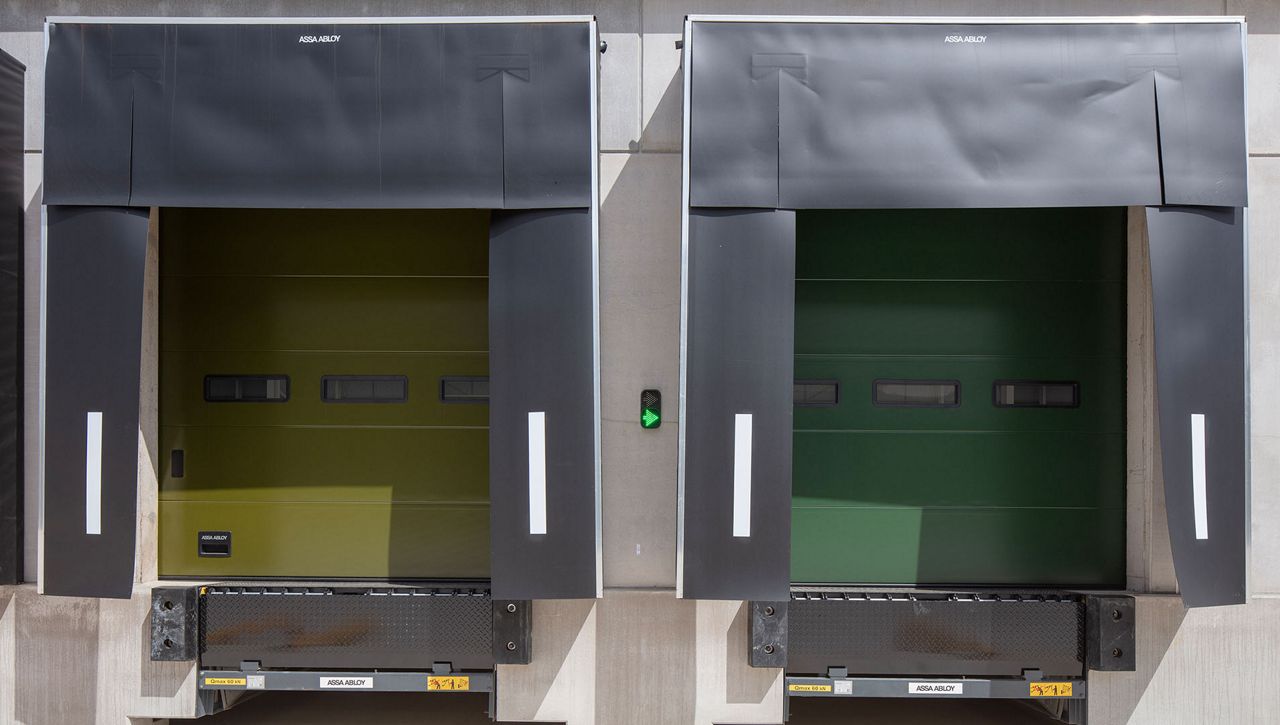

When a vehicle reverses into the ASSA ABLOY DS6060A, the flexible side and top curtains form a secure seal, providing excellent weather protection. This enhances the working environment while ensuring product safety during transportation and storage.
Key Features & Benefits:
Superior Durability: The high-quality curtain material offers exceptional wear and tear resistance for long-term performance.
Versatile Fit: Suitable for a range of vehicle sizes, making it ideal for various Irish industries.
Impact-Resistant Design: Built-in spring mechanisms allow the shelter to flex with vehicle movement, reducing damage and increasing lifespan.
Cost-Effective Solution: A high value-to-cost ratio makes this dock shelter a preferred option for loading bays across Ireland.
Innovative Curtain Fixation System
Unlike traditional dock shelters, the ASSA ABLOY DS6060A features a unique steel ball fixation system for securing the front curtains. This advanced design enhances tear resistance and eliminates weak points associated with screws or rivets. The factory-made perforations ensure greater durability and reduced maintenance.
Energy Efficiency & Sustainability
At ASSA ABLOY, sustainability is a priority. Our mechanical dock shelters can be fitted with optional enhancements to improve working conditions and reduce energy loss, making them an excellent choice for Irish businesses aiming to improve efficiency.
Enhance your loading bay with the ASSA ABLOY DS6060A Curtain Dock Shelter – the trusted solution for durability, flexibility, and energy efficiency in Ireland!
ASSA ABLOY DS6060A Curtain Dock Shelter Aluminium
BIM object
Collapsable frame
Frame parts of aluminium
Medium sizes range
Downloads
ASSA ABLOY DS6060A Curtain Dock Shelter Aluminium
- Product Id : DS6060A
- Normal height: 3200, 3400, 3600 mm
- Normal width: 3250, 3450 mm
- Normal depth: 600, 900 mm
- Top curtain: 1000, 1200 mm
- Side curtain: 600, 700 mm
- Curtain colour: black
- Parking guides: white, yellow
- Wall fixings: concrete, sandwich,light concrete, loadhouse, cavity, insulated panel
- Top and side curtains: double layer high quality polyester
- Thickness: 3,0 mm
- Weight Approx.: 3400 g/m²
- Continuous roof cover: one layer high quality polyester
- Thickness: 0,5 mm
- Weight Approx.: 680 g/m²
- Flammability all curtains: DIN 75200
- Product Id : DS6060A
