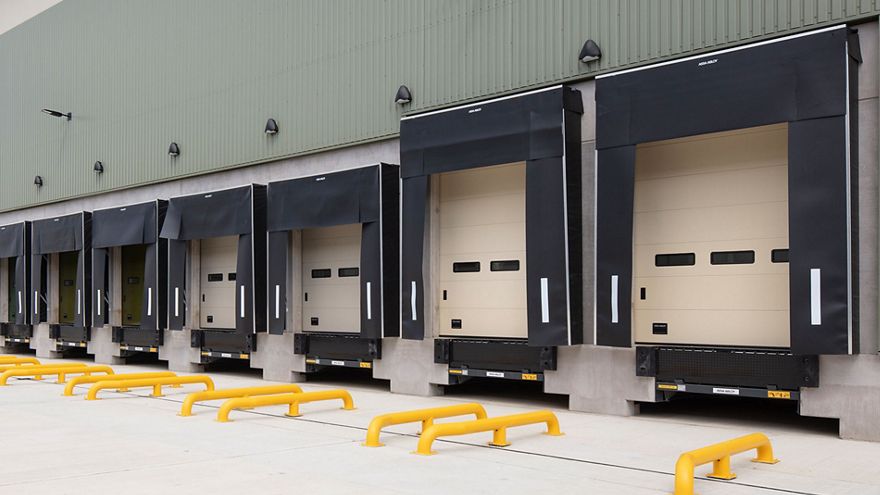

As a truck backs into position, the flexible top and side curtains wrap around the vehicle, reducing exposure to wind and rain. This helps protect both goods and staff, ensuring a safer and more comfortable work environment. The durable curtain material offers exceptional resistance to wear and tear, making it a long-lasting solution for busy loading bays.

Designed for Performance and Longevity

Absorbs minor impacts: Built-in springs allow movement if a vehicle strays off-center, preventing damage.
Suitable for various vehicle sizes: A flexible solution tailored to different loading bay requirements.
Cost-effective and reliable: A trusted choice for European loading docks due to its balance of performance and durability.



Advanced Front Curtain Fixation System

Unlike standard mechanical dock shelters, the ASSA ABLOY DS6060P features an innovative steel ball fixation system for its front curtains. This method enhances durability by preventing stress points and increasing tear resistance, outperforming traditional screw or rivet-based fixations.

Energy Efficiency and Workplace Comfort

ASSA ABLOY mechanical dock shelters can be fitted with additional energy-saving options to reduce draughts and improve insulation within the loading bay. These enhancements help create a more sustainable and comfortable working environment.

Download banner with a person typing on a laptop.Download banner with a person typing on a laptop.

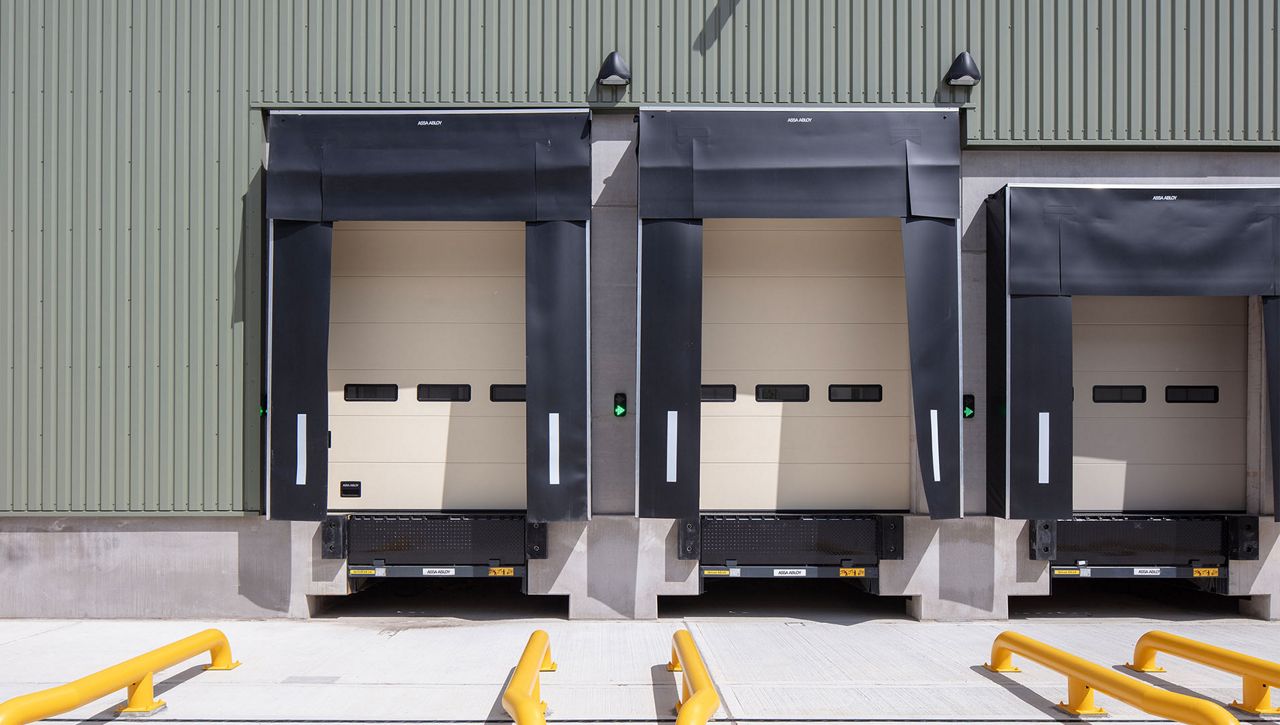

ASSA ABLOY DS6060P Curtain Dock Shelter Parallel

BIM object

Weather protection

Collapsable frame

Frame parts of aluminium

Large sizes range

  • ASSA ABLOY DS6060P

    • Product ID : DS6060P
    • Normal height: 3200, 3400, 3600, 3800, 4000,4200, 4400, 4600 mm
    • Normal width: 3200, 3250, 3400, 3450, 3500 mm
    • Normal depth: 600, 900 mm
    • Top curtain 1000, 1200, 1500 mm
    • Side curtain: 600, 700 mm
    • Curtain colour: black
    • Parking guides: white, yellow
    • Wall fixings: concrete, sandwich,light concrete, loadhouse, cavity, insulated panel
    • Top and side curtains: double layer high quality polyester
    • Thickness: 3,0 mm
    • Weight Approx.:  3400 g/m²
    • Continuous roof cover: one layer high quality polyester
    • Thickness: 0,5 mm
    • Weight Approx.: 680 g/m²
    • Flammability all curtains: DIN 75200
